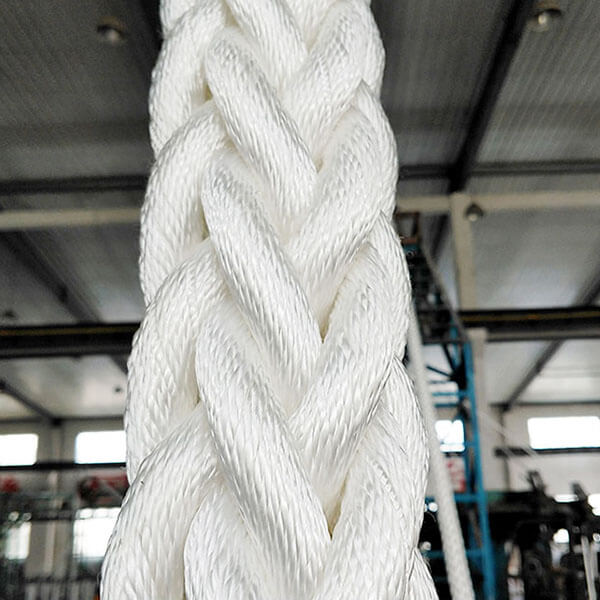

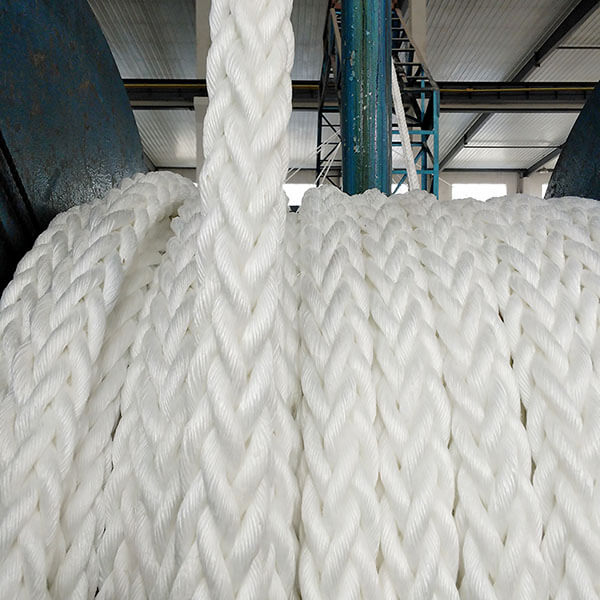

Polyester 12 Strands Rope

Model Number: Polyester 12 Strands Rope

FOB Price: US $ 1.00-10.00 / Meter

Min order: 500 Meter

Accept Min order: Yes

Supply Ability: 6000 Meter /Day

Stock Time: 7-15 Day

BASIC INFO

Polyester 12 Strands Rope 图



Features

Best thermostability.
Anti-aging, UV resistance, Anti-fungus
Stable chemical performance, high acid resistance
Good tensile strength , good rigidity, not easy deformation
Good wear resistance, high intensity, long service life
Good UV protection performance(UPF)

Application :

Mainly used in mooring ships, ocean transportation, port terminals national defense. mine traction.etc

Size Linear
Density
ktex
Standard
Tolerance
%
Weight Min
Breaking Strength
Diameter Cir(inch) KGS/220M LBS/100FT KN Ton
20 2-1/2 303 ±5 66.7 20.4 70 7.2
24 3 437 ±5 96.1 29.4 100 10.3
28 3-1/2 594 ±5 130.7 40.0 145 14.8
32 4 778 ±5 171.2 52.0 181 18.5
36 4-1/2 982 ±5 216.0 66.0 210 21.4
40 5 1215 ±5 267.3 82.0 265 27.0
44 5-1/2 1468 ±5 322.9 99.0 312 31.8
48 6 1750 ±5 385.0 118.0 365 37.2
52 6-1/2 2050 ±5 451.0 138.0 422 43.0
56 7 2380 ±5 523.6 160.0 485 58.2
60 7-1/2 2730 ±5 600.6 183.5 540 55.0
64 8 3110 ±5 684.2 209.0 630 64.0
72 9 3930 ±5 864.6 264.0 780 79.6
80 10 4850 ±5 1067.0 326..0 958 97.7
88 11 5870 ±5 1291.4 394.5 1150 117.3
96 12 6990 ±5 1537.8 470.0 1360 139.0
104 14 8200 ±5 1804.0 551.0 1570 160.0
112 14 9500 ±5 2090.0 638.4 1790 183.0
120 15 10900 ±5 2398.0 733.0 2060 210.0
128 16 12400 ±5 2728.0 833.3 2340 239.0
136 17 14000 ±5 3080.0 941.0 2650 270.0
144 18 15700 ±5 3454.0 1055.0 2930 299.0
152 19 17500 ±5 3861.0 1179.5 3270 334.0
160 20 19400 ±5 4268.0 1304.0 3620 369.0
