BASIC INFO

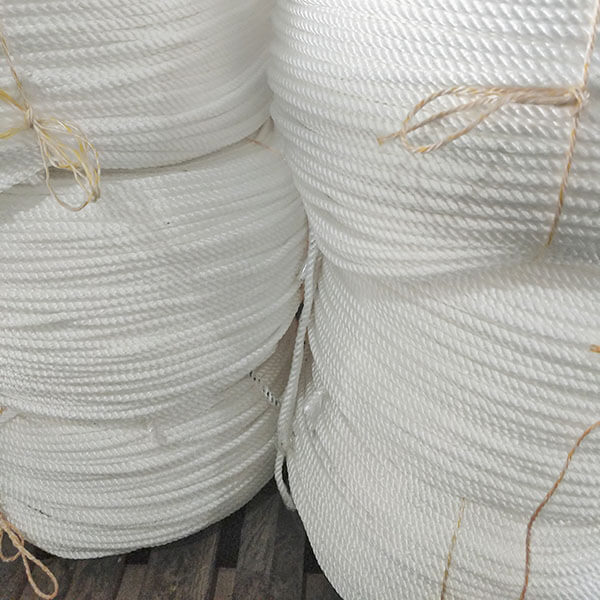

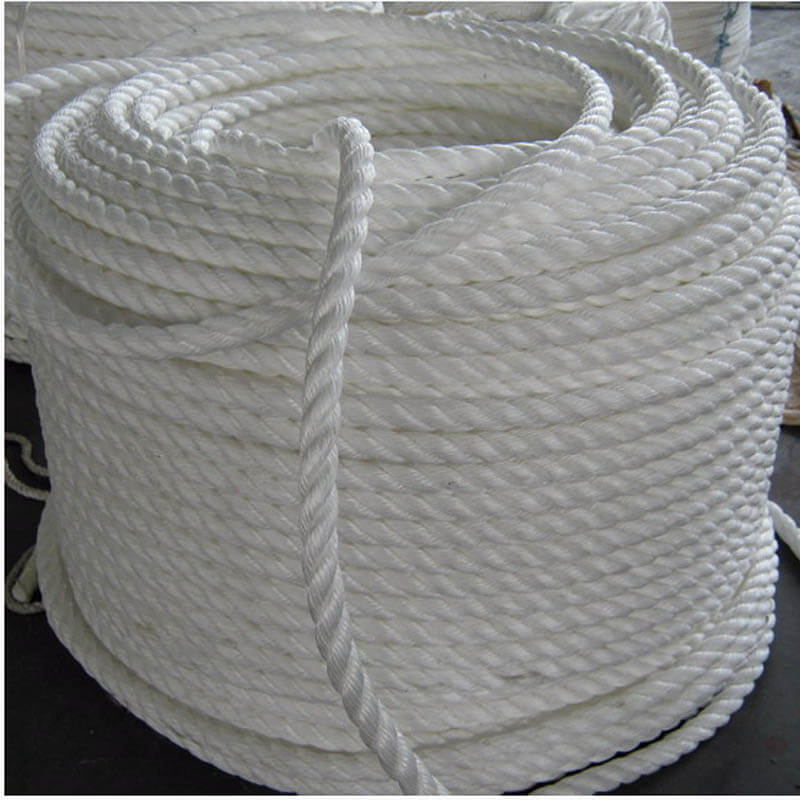

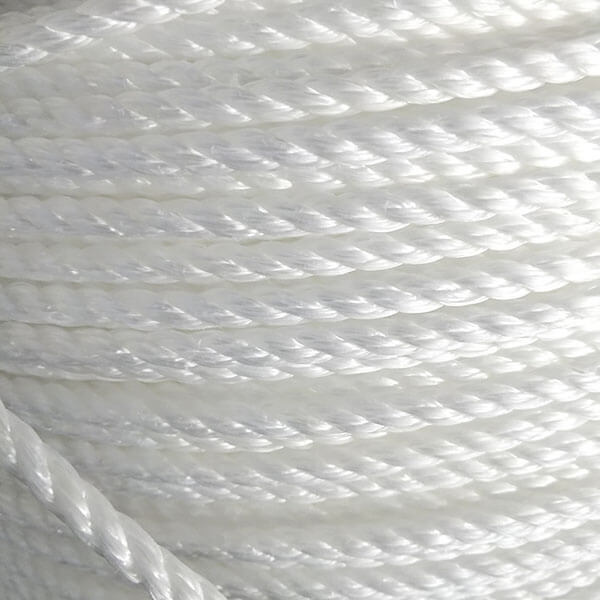

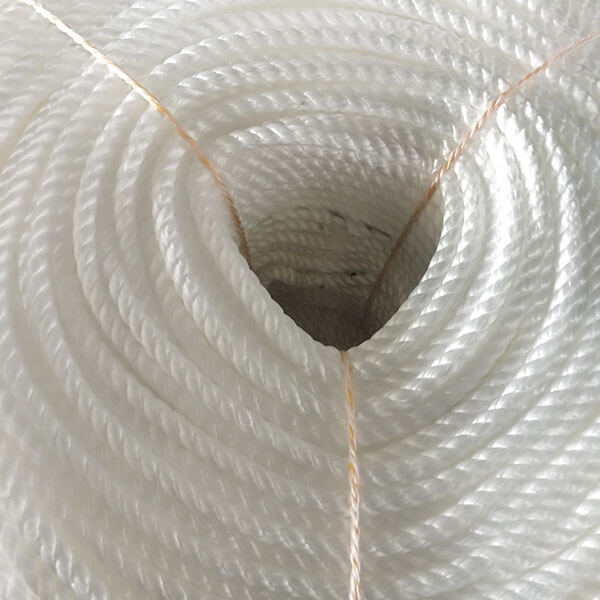

Polyamide Fiber Rope Features
High resilience
Best wear-resisting performance
Good UV protection performance
Application
Widely used in large ships, warships, towing, oil exploration, fisheries, mining and many other fields
| Size | Linear
Density ktex |
Standard
Tolerance% |
Weight | Min Breaking strength | |||
| Diameter | Cir(inch) | KGS/220M | LBS/100FT | KN | TON | ||
| 4 | 1/2 | 10.5 | ±10 | 2.3 | 0.71 | 3.0 | 0.306 |
| 6 | 3/4 | 22.5 | ±10 | 5.0 | 1.51 | 6.8 | 0.690 |
| 8 | 1 | 40.0 | ±10 | 8.8 | 2.68 | 13 | 1.33 |
| 10 | 1-1/4 | 62.0 | ±8 | 13.6 | 4.17 | 19 | 1.94 |
| 12 | 1-1/2 | 89.0 | ±8 | 19.6 | 5.98 | 28 | 2.86 |
| 14 | 1-3/4 | 122 | ±8 | 26.8 | 8.20 | 38 | 3.87 |
| 16 | 2 | 158 | ±5 | 34.8 | 10.61 | 47 | 4.80 |
| 18 | 2-1/4 | 200 | ±5 | 44.0 | 13.44 | 61 | 6.22 |
| 20 | 2-1/2 | 245 | ±5 | 54.0 | 16.46 | 75 | 7.65 |
| 22 | 2-3/4 | 300 | ±5 | 66.0 | 20.20 | 90 | 9.18 |
| 24 | 3 | 355 | ±5 | 78.1 | 23.60 | 108 | 11.01 |
| 26 | 3-1/4 | 420 | ±5 | 92.4 | 28.23 | 125 | 12.00 |
| 28 | 3-1/2 | 485 | ±5 | 106.7 | 32.60 | 145 | 14.79 |
| 30 | 3-3/4 | 555 | ±5 | 122.0 | 37.70 | 160 | 16.32 |
| 32 | 4 | 630 | ±5 | 139.0 | 42.34 | 180 | 18.40 |
| 36 | 4-1/2 | 800 | ±5 | 176.0 | 53.80 | 226 | 23.10 |
| 40 | 5 | 990 | ±5 | 218.0 | 66.53 | 270 | 27.54 |
| 44 | 5-1/2 | 1200 | ±5 | 264.0 | 80.65 | 320 | 32.64 |
| 48 | 6 | 1420 | ±5 | 312.4 | 95.43 | 380 | 38.76 |
| 52 | 6-1/2 | 1660 | ±5 | 365.2 | 111.60 | 440 | 44.90 |
| 56 | 7 | 1930 | ±5 | 425.0 | 129.7 | 485 | 49.50 |
| 60 | 7-1/2 | 2118 | ±5 | 465.0 | 142.34 | 562 | 57.32 |
