BASIC INFO
Polypropylene Monofilament Rope Features:
Good electrical insulation and high resistivity
Good antimicrobial performance
Acid resistance, alkali resistance and organic solvents
Good abrasion resistance
UV protection properties (UPF)
Application:
Mainly used in ship mooring, towing, Marine fishing, Marine aquaculture and other fields.
Size | Linear Desity ktex |
Standard Tolerance % |
Weight | Min Breaking Strength | |||
Diameter | Cir(inch) | KGS/220M | LBS/100FT | KN | Ton | ||
28 | 3-1/2 | 355 | ±5 | 78.1 | 24.0 | 110 | 11.22 |
32 | 4 | 460 | ±5 | 101.2 | 31.0 | 145 | 14.8 |
36 | 4-1/2 | 585 | ±5 | 128.7 | 39.3 | 172 | 17.5 |
40 | 5 | 720 | ±5 | 158.4 | 48.4 | 210 | 21.4 |
44 | 5-1/2 | 880 | ±5 | 193.6 | 59.1 | 252 | 25.7 |
48 | 6 | 1040 | ±5 | 228.8 | 70.0 | 300 | 30.6 |
52 | 6-1/2 | 1220 | ±5 | 268.4 | 82.0 | 345 | 35.2 |
56 | 7 | 1420 | ±5 | 312.4 | 95.4 | 390 | 39.8 |
60 | 7-1/2 | 1630 | ±5 | 358.6 | 109.5 | 445 | 45.4 |
64 | 8 | 1850 | ±5 | 407.0 | 124.3 | 505 | 51.5 |
72 | 9 | 2340 | ±5 | 514.8 | 157.3 | 629 | 64.2 |
80 | 10 | 2900 | ±55 | 638.0 | 195.0 | 760 | 77.5 |
88 | 11 | 3510 | ±5 | 772.2 | 236.0 | 910 | 92.82 |
96 | 12 | 4170 | ±5 | 917.4 | 280.2 | 1110 | 113.2 |
104 | 14 | 4900 | ±5 | 1078.0 | 329.3 | 1276 | 130.2 |
112 | 14 | 5700 | ±5 | 1254.0 | 383.0 | 1435 | 146.4 |
120 | 15 | 6500 | ±5 | 1430.0 | 436.8 | 1675 | 170.9 |
128 | 16 | 7400 | ±5 | 1628.0 | 497.3 | 1865 | 190.2 |
136 | 17 | 8400 | ±5 | 1848.0 | 565.0 | 2141 | 218.4 |
144 | 18 | 9400 | ±5 | 2068.0 | 632.0 | 2341 | 238.8 |
152 | 19 | 10460 | ±5 | 2301.2 | 703.0 | 2540 | 259.1 |
160 | 20 | 11521 | ±5 | 2535.0 | 774.3 | 2760 | 281.5 |

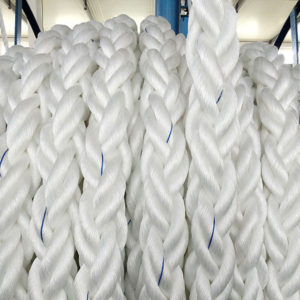

Prev: 8 Strands Polyester Rope
