Inflatable Pipeline Buoyancy Bags

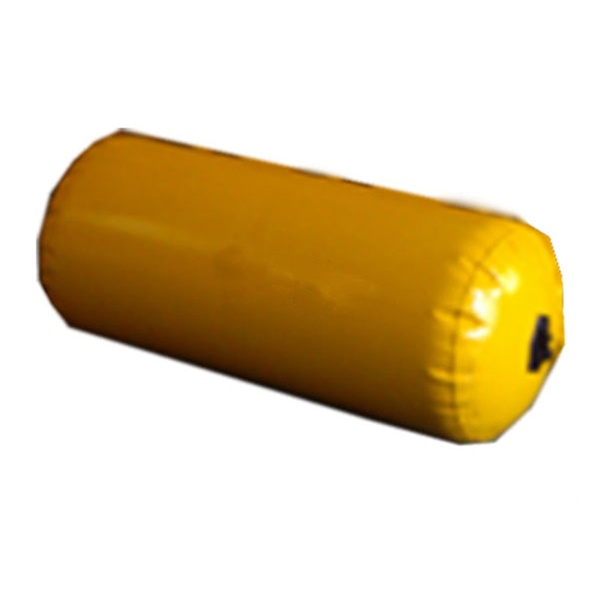

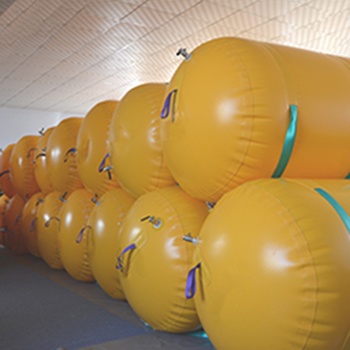

Inflatable pipeline buoyancy bags are cylindrical shaped units, fabricated from heavy duty polyester cloth coated with P.V.C, completely equipped including the appropriate quantity of automatic air relief valves, certified heavy duty polyester webbing with shackles (with safe working factor 6:1), and air inlet stainless/brass ball valves.

BASIC INFO

Inflatable pipeline buoyancy bags are cylindrical shaped units, fabricated from heavy duty polyester cloth coated with P.V.C, completely equipped including the appropriate quantity of automatic air relief valves, certified heavy duty polyester webbing with shackles (with safe working factor 6:1), and air inlet stainless/brass ball valves.

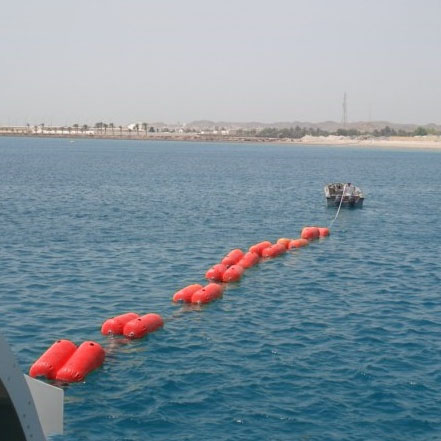

Inflatable pipeline buoyancy bags provide an ideal system of buoyancy for cable or pipeline and static buoyancy support. Inflatable buoyancy bags can be attached to the pipe along the pipeline suitable for installation buoyancy on pipeline float-outs, beach pulls and river crossings.

Features and Advantages:

–    Made of heavy duty PVC coated polyester fabric
–    All seams are RF welded
–    Fold compactly for easy efficient storage
–    3/4” B.S.P air inlet stainless/brass ball valves
–    Certificate Webbing harness (with 6:1 safe working factor) terminate with end shackles
–    Automatic Pressure Relief Valves
–    Design Safety Working Factor 6:1
–    Delivered ready for use
–    Manufactured and Tested in accordance with IMCA D016, Rev3
–    Custom sizes and types available

Specification:

Model Lift Capacity Diameter Length Package Size Appr. Weight
kg lb m m m kg
PBB-50L 50 110 0.3 0.6 0.60*0.30*0.20 5
PBB-100L 100 220 0.4 0.9 0.65*0.30*0.25 6
PBB-250L 250 550 0.7 1.1 0.70*0.35*0.30 8
PBB-500L 500 1100 0.9 1.4 0.80*0.35*0.30 10
Model Lift Capacity Diameter Length Package Size Appr. Weight
kg lb m m m kg
PBB-1 1000 2200 1.0 1.8 1.20*0.40*0.35 18
PBB-2 2000 4400 1.2 2.3 1.10*0.40*0.40 28
PBB-3 3000 6600 1.4 2.5 1.20*0.50*0.45 39
PBB-5 5000 11000 1.5 3.4 1.30*0.50*0.50 52
PBB-6 6000 13200 1.6 3.6 1.35*0.50*0.50 66
PBB-8 8000 17600 1.8 3.8 1.30*0.60*0.60 78
PBB-10 10000 22000 2.1 3.6 1.30*0.80*0.60 89
PBB-15 15000 33000 2.2 4.6 1.30*0.80*0.70 120
PBB-20 20000 44000 2.4 5.6 1.30*0.80*0.75 138
PBB-25 25000 55125 2.5 5.7 1.60*0.90*0.80 189
PBB-30 30000 66000 2.7 6.1 1.60*0.90*0.80 280
PBB-35 35000 77000 2.9 6.2 1.60*1.00*0.90 310
PBB-50 50000 110000 2.9 8.0 1.60*1.00*1.00 340
