Rubber solid floating oil spill boom is made of double strength synthetic fiber cloth which is covered with good quality synthetic rubber. Solid Float Rubber Boom is the important equipment used for preventing spilled oil on waters from diffusion and transfer. It is widely used for long-term deployment on waters such as open seas, bays, harbors, rivers, oil platforms, oil-refining plants, oil piers, oil storage, sea bathing area, etc. And also for emergent use in oil spilling accidents.
Features:
-
- Made of double-strength synthetic fiber cloth which is covered with good quality synthetic rubber.
- The surface of the boom is convenient to guide spilled oil and to be cleaned.
- Oil-resisting, wear-resisting, seawater-resisting, and ultraviolet ray aging-resisting.
- The unique configuration of floats has great buoyancy reserve, and high intensity and stability.
Specifications of the oil boom:
| Model | WGV550 | WGV600 | WGV750 | WGV900 | WGV1200 | WGV1500 | |
| Freeboard(mm) | 130 | 180 | 260 | 300 | 360 | 500 | |
| Draught(mm) | 330 | 380 | 390 | 480 | 650 | 750 | |
| Section’s Length(m) | 10/20 | 10/20 | 20 | 20 | 20 | 20 | |
| Operational Limits | Tension Strength(kn) | 20 | 20 | 30 | 50 | 80 | 120 |
| Wove Height(m) | 0.3 | 0.3 | 0.5 | 1 | 1.5 | 2 | |
| Wind Speed(m/s) | 8 | 8 | 10 | 15 | 20 | 20 | |
| Current Speed(kn) | 1 | 1 | 1.5 | 1.5 | 2 | 3 | |
| Weight | 51 | 53 | 75 | 130 | 195 | 255 | |
| Packing Size Per Section | Length(m) | 1 | 1 | 1.1 | 1.3 | 1.6 | 1.9 |
| Width(m) | 0.88 | 0.88 | 1.1 | 1.1 | 1.5 | 1.8 | |
| Height(m) | 0.8 | 0.8 | 0.85 | 10 | 1.25 | 1.5 | |

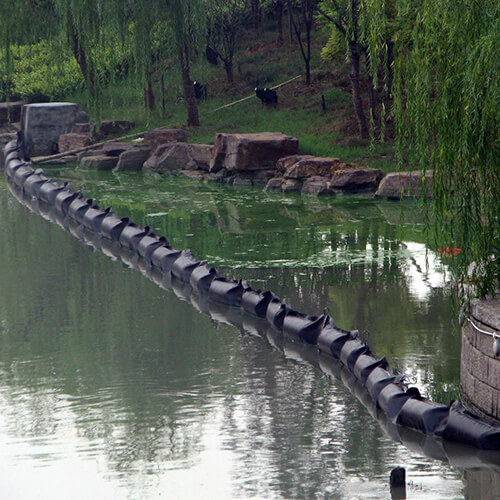

The rubber solid floating oil spill boom is suitable for permanent deployment, frequent operation, and adverse circumstances, such as seaport, and oil wharf, aquatic sea bath beach, water plantation, and other important sensitive sites. It also can be used in an emergency spill-oil action.
